Voltage Drop: How Wire Length Impacts Power & Solutions

Introduction: The Hidden Challenge of Long Wires

Long electrical wires are essential for distributing power across homes, factories, and farms. However, as wire length increases, voltage drops become inevitable, leading to inefficiencies, equipment damage, and even safety hazards. This article explains the science behind voltage drop, its real-world consequences, and how Reton Power’s RT-LSVR Low-Voltage Automatic Regulator provides a reliable solution—backed by technical expertise and proven results.

1. The Science of Voltage Drop: How Wire Length Affects Voltage

1.1 Voltage Drop Formula

Voltage drop (𝑉dropVdrop​) is calculated using Ohm’s Law:𝑉drop=𝐼×𝑅Vdrop​=I×R

• 𝐼I: Current flowing through the wire (Amperes).
• 𝑅R: Wire resistance (Ohms), which depends on:
  • Wire length: Longer wires = higher resistance.
  • Wire material: Copper (low resistance) vs. aluminum (higher resistance).
  • Wire gauge: Thinner wires = higher resistance.

1.2 Why Longer Wires Cause Greater Voltage Drop

• Resistance increases with length: Doubling wire length doubles resistance.
• Power loss: Energy dissipates as heat due to resistance, reducing usable voltage at the load.
• Example: A 100-meter 10-gauge copper wire carrying 20A loses ~7.3V (3.3% drop at 220V).

2. Consequences of Voltage Drop

2.1 Reduced Equipment Efficiency

• Motors and appliances run slower or overheat.
• LEDs flicker; sensitive electronics malfunction.

2.2 Increased Energy Costs

Higher current is needed to compensate for voltage loss, raising energy bills.

2.3 Safety Risks

Overheating wires can melt insulation, causing short circuits or fires.

3. Solving Voltage Drop: The RT-LSVR Low-Voltage Automatic Regulator

3.1 Product Overview

Developed by Reton Power, a leader in power quality solutions, the RT-LSVR series automatically adjusts voltage to counteract drops caused by long wires or fluctuating loads.

3.2 How It Works

• Compensation Principle:

𝑈2=𝑈1+Δ𝑈U2​=U1​+ΔU

• 𝑈1U1​: Input voltage.
• Δ𝑈ΔU: Compensated voltage added by the regulator.
• Smart Adjustment:
  • Monitors output voltage continuously.
  • Activates compensation transformer to adjust Δ𝑈ΔU within ±20% range.
  • Responds in ≤100 seconds to voltage fluctuations.

3.3 Key Features

• Wide Application: Suitable for single-phase (220V) and three-phase (380V) systems.
• High Capacity: Available in 10kVA to 90kVA models.
• Advanced Protection: Guards against overvoltage, undervoltage, overload, and overheating.
• Zero Downtime: Automatically bypasses to maintain power during faults or maintenance.

4. Technical Specifications

5. Real-World Applications

Case Study: Rural Farm Voltage Stabilization

A farm in rural China faced chronic voltage drops due to a 500-meter power line feeding irrigation pumps and livestock equipment. After installing the RT-LSVR-60:

• Voltage stabilized within ±3% of 380V.
• Pump efficiency improved by 18%.
• Annual energy costs reduced by 10%.

6. Frequently Asked Questions

Q1: Can the RT-LSVR handle solar panel voltage surges?

Yes! It compensates for both low voltage (long wires) and high voltage (solar overvoltage).

Q2: How is the RT-LSVR installed?

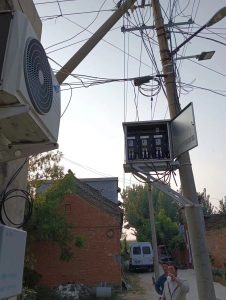

It’s wired in series with the main line and mounted on poles. Reton Power provides professional installation support.

Q3: What maintenance is required?

The RT-LSVR is maintenance-free, with self-diagnostic features and automatic bypass.

Conclusion: Eliminate Voltage Drop with Reton Power

Wire length doesn’t have to mean unstable voltage. Reton Power’s RT-LSVR Low-Voltage Automatic Regulator ensures consistent power, protects equipment, and cuts energy waste—whether you’re powering a home, factory, or solar farm.
