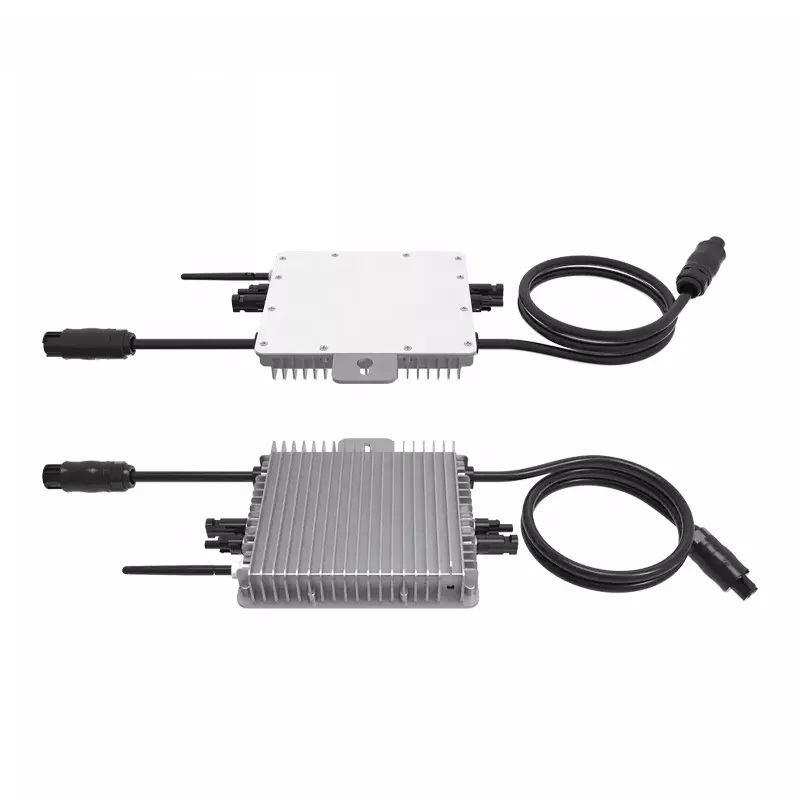

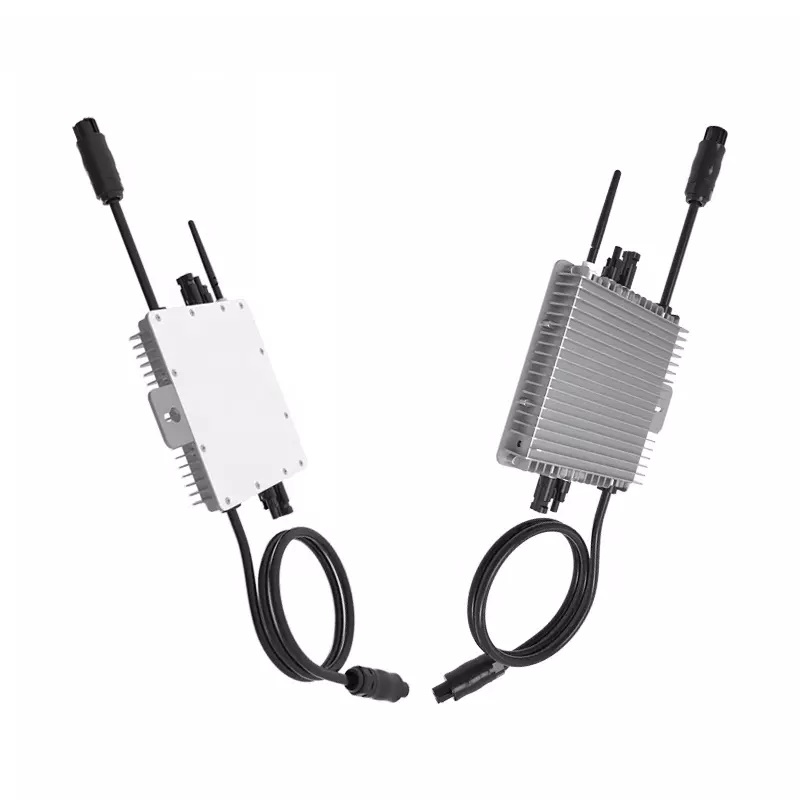

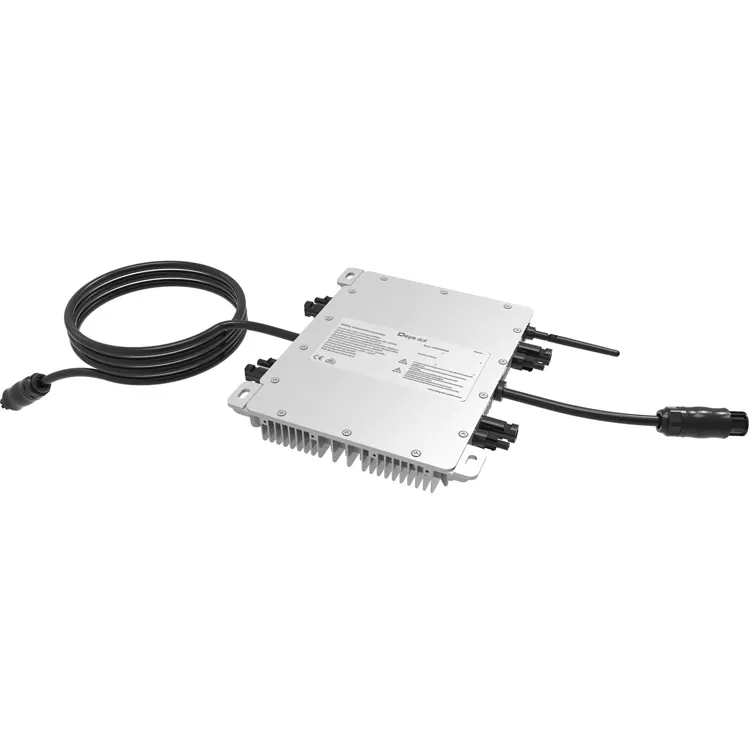

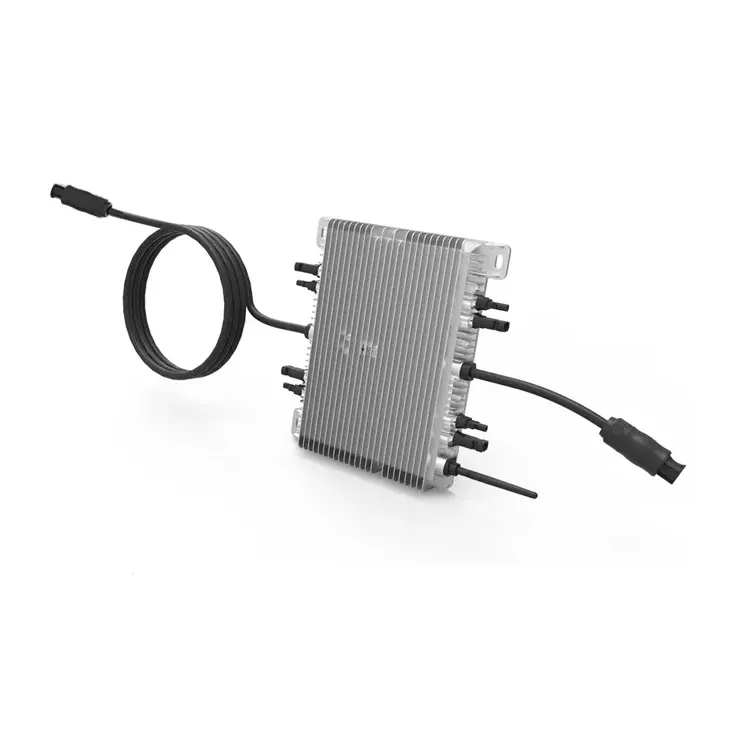

DEYE sun600g3-Eu-230 Solar Micro Inverter

Input Voltage
25~55V
Output Current
2.6A
Output Frequency
50/60Hz
Output Type
Single
Share
Product Description

Specification
Model SUN500G3-EU-230 SUN600G3-EU-230 SUN800G3-EU-230
Input Data (DC)
Recommended input Power(STC) 210~600W (1 Piece) 210~400W (2 Pieces) 210~500W (2 Pieces)
Maximum input DC Voltage 60V
MPPT Voltage Range 25~55V
Full Load DC Voltage Range (V) 40~55V 24.5~55V 33~55V
Max. DC Short Circuit Current 19.5A 2*19.5A
Max. input Current 13A 2*13A
No.of MPP Trackers 1 2
No.of Strings per MPP Tracker 1
Output Data (AC)
Rated output Power 500W 600W 800W
Rated output Current 2.2A 2.6A 3.5A
Nominal Voltage / Range 230V/0.85Un-1.1Un (this may vary with grid standards)
Nominal Frequency / Range 50 / 60Hz
Extended Frequency / Range 45~55Hz / 55~65Hz
Power Factor >0.99
Maximum units per branch 10 8 6
Mechanical Data
Ambient Temperature Range -40~65
Size (W*H*D mm)
(Without mounting bracket and cable)
189*184*31.5mm 212*230*40mm
Weight (kg) 2.15 3.15
Cooling Natural cooling
Enclosure Environmental Rating IP67
Features
Compatibility Compatible with 60~72 cell PV modules

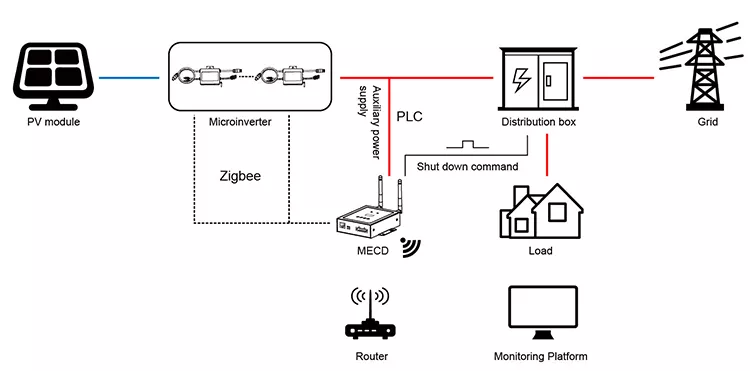

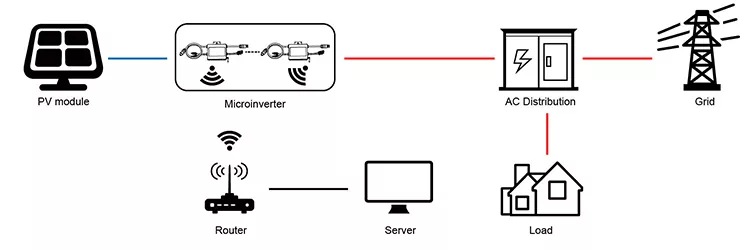

Communication Power line / WIFI / Zigbee
Grid Connection Standard EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149,
ABNT NBR 16150, ABNT NBR 62116,
RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
Safety EMC / Standard 1741, IEC62109-1/-2, IEC61000-6-1,
IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty 10 years
Packing & Delivery

FAQ
Are you trading company or manufacturer?

We are a professional manufacturer in China.

Where is the factory of Ruitong?

Zhengzhou City,Henan Province, China

What can I get to be Retonpower agent:

*More technical training, support and more free spare parts.
*Special price support for Retonpower agent.
*Advertising & publicity expenses share for Retonpower brand.
*Annual bonus, based on your annual sales amount.
*Fast good delivery as we have regular products in stock.

What can you buy from us?

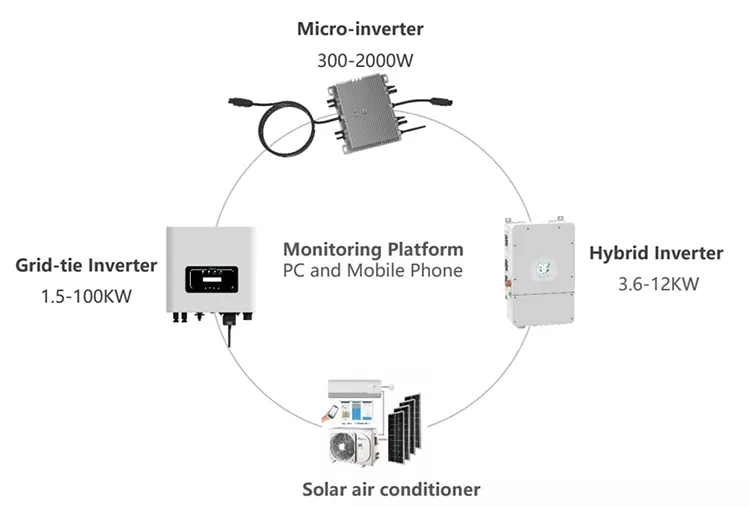

Hybrid inverter, off grid solar inverter, solar panel,lithium iron battery ,storage solar system and electrical equipment.
