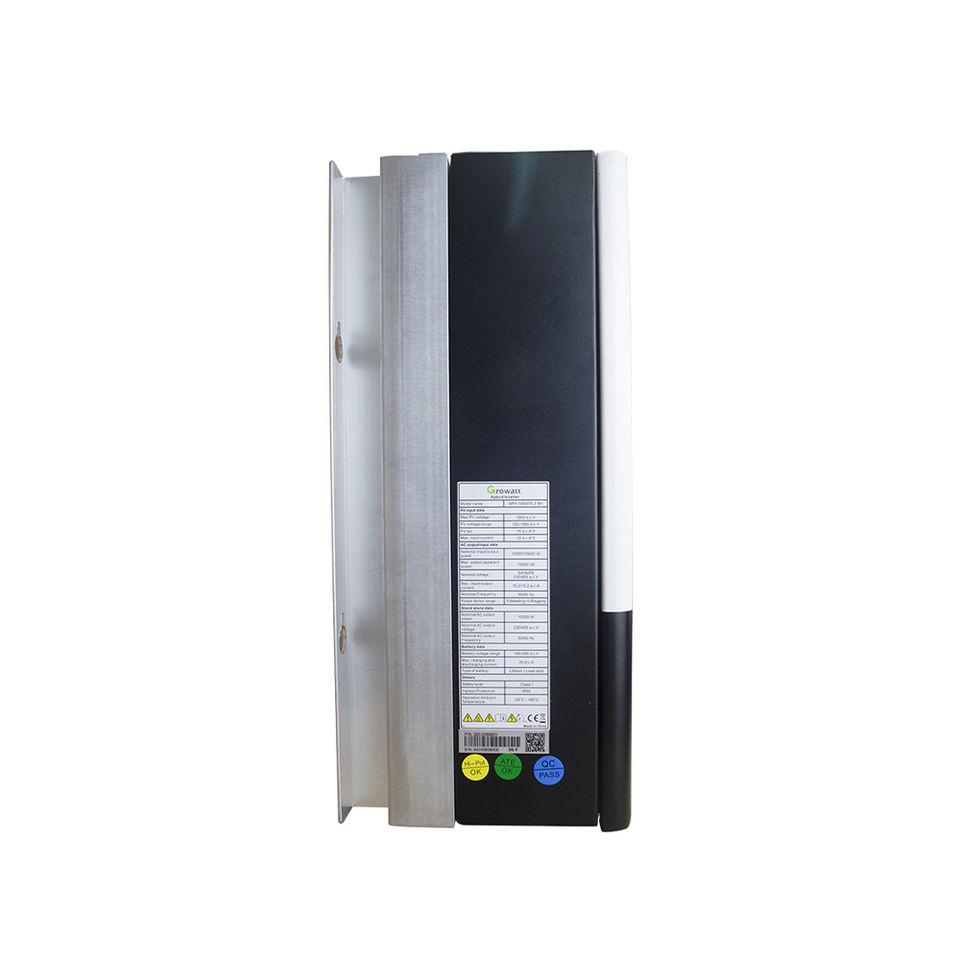

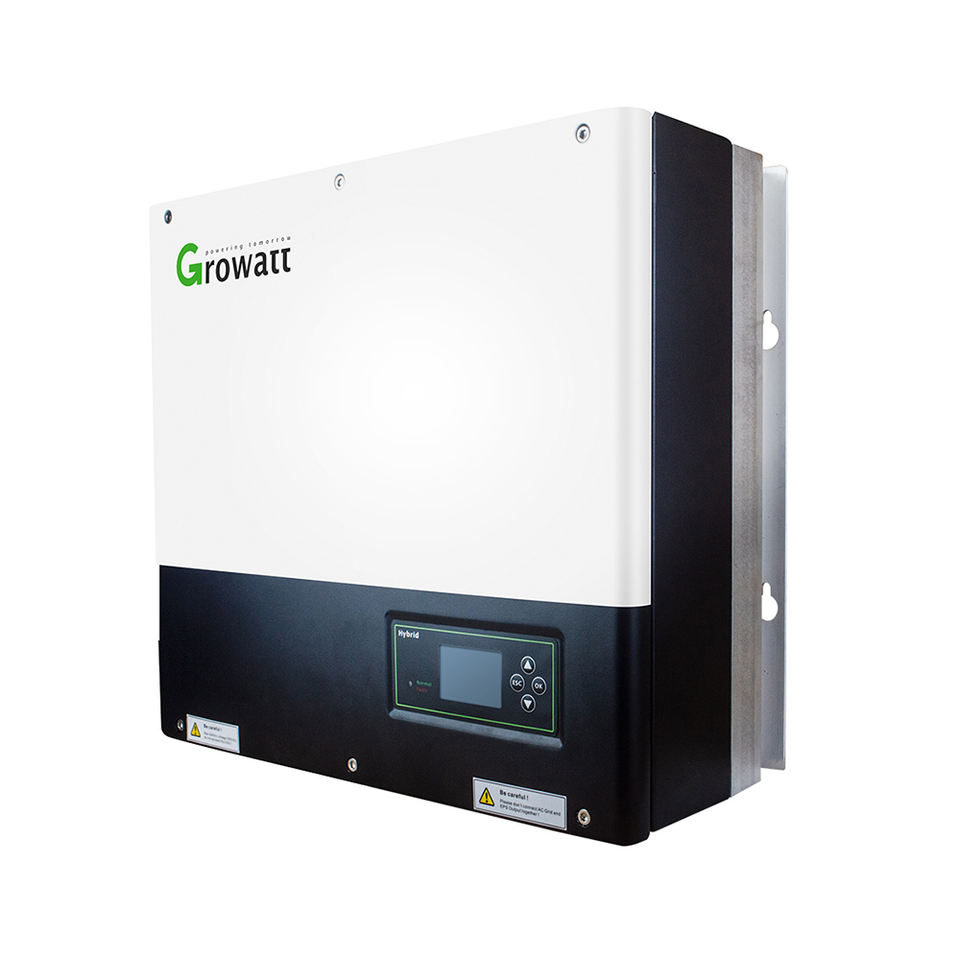

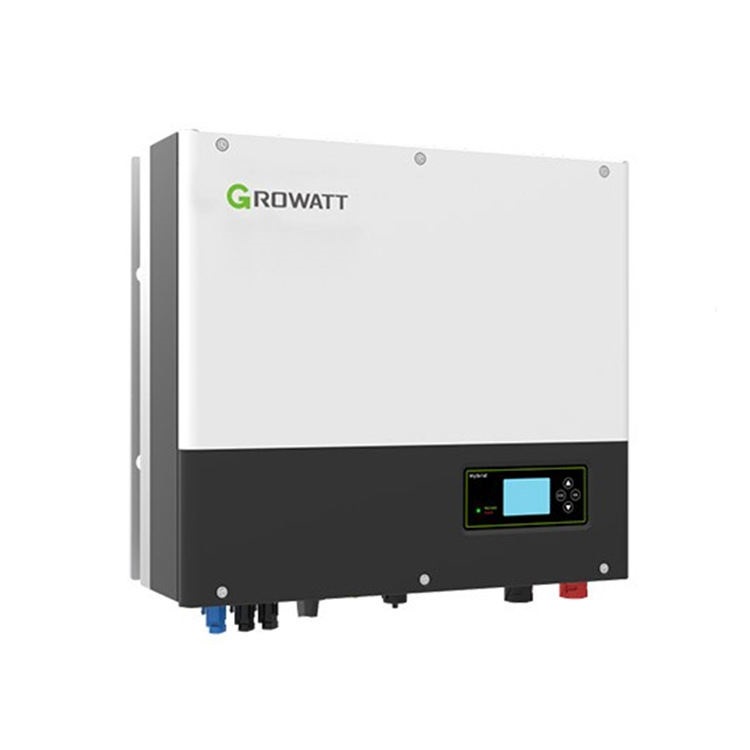

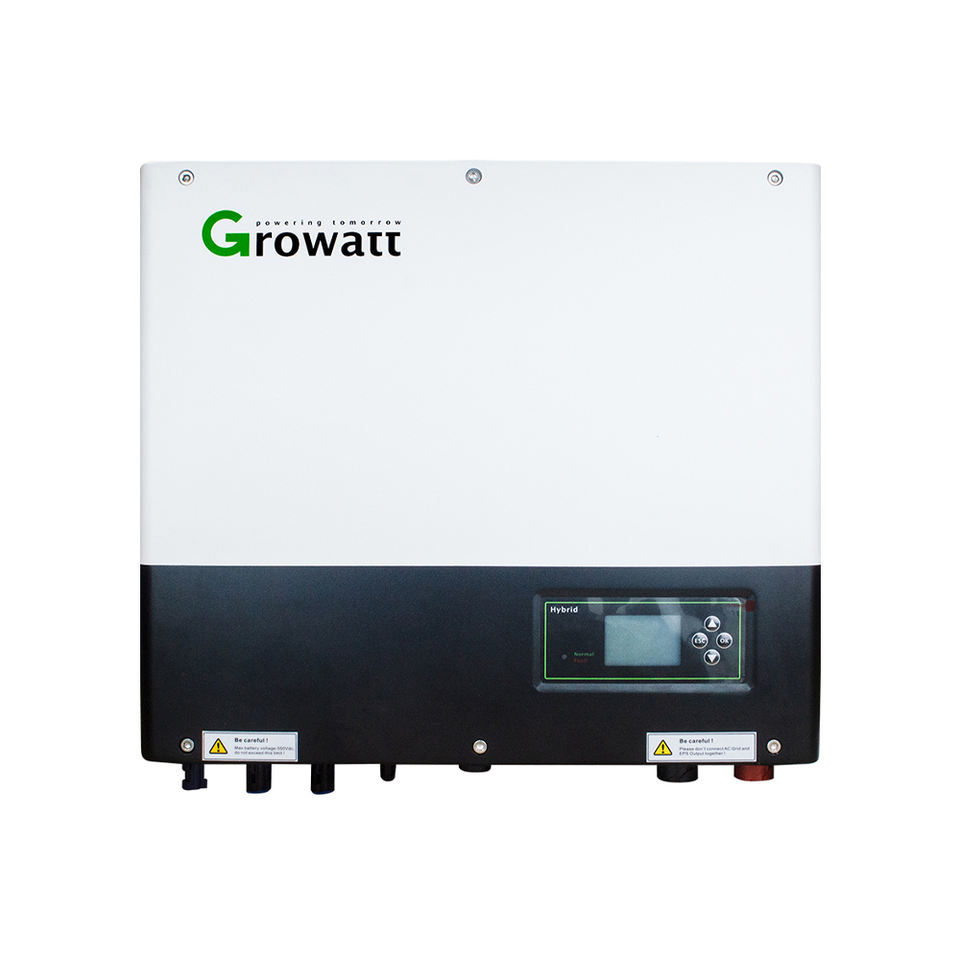

Growatt SPH4000-10000TL3BH-UP Three Phase Hybrid Inverter

Type Hybrid	MPPT voltage range 120V-1000V
MPPT efficiency 99.9%	Protection degree IP66

Free Quote [email protected]

Product Description Specification Packing & Delivery FAQ Related Products

Product Description

Specification

Datasheet	SPH4000TL3 BH-UP	SPH5000TL3 BH-UP	SPH6000TL3 BH-UP	SPH7000TL3 BH-UP	SPH8000TL3 BH-UP	SPH10000TL3 BH-UP
Input Data(DC)
Max PV Power	6000W	7500W	9000W	10500W	12000W	15000W
Max DC Voltage	1000V
Start Voltage	120V
Nominal Voltage	600V
MPP voltage range	120V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13.5A
Max. short-circuit current per MPP tracker	16.9A
Output Data(AC)
AC nominal Power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC voltage (range)	230V/400V (310-476V)
AC grid frequency (range)	50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Battery Data(DC)
Battery voltage range	100~550V
Max charging and discharging current	25A
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Type of battery	Lithium battery
Backup power(AC)
Max. AC output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Nominal AC output voltage	230V/400V
Nominal AC output frequency	50/60HZ
THDv	<3%
Switch time	<10ms
Efficiency
Max efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
European efficiency	97.0%	97.2%	97.3%	97.4%	97.4%	97.5%
Protection Devices
DC switch	Yes
DC reverse polarity protection	Yes
AC/DC Surge Protection	Type II
Battery Reverse Protection	Yes
AC short-circuit Protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
Insulation resistance monitoring	Yes
General Data
Dimension	505/453/198mm
Weight	30kg
Operating temperature range	–25 °C … +60 °C
Nighttime power consumption	<13W
Topology	Transformerless
Cooling	Natural
Protection degree	IP65
Relative humidity	0~100%
Altitude	3000m
DC connection	H4 / MC4 (Optional )
AC connection	Connector
Display	LCD+LED
Interfaces: RS485/CAN/USB	Yes/Yes/Yes

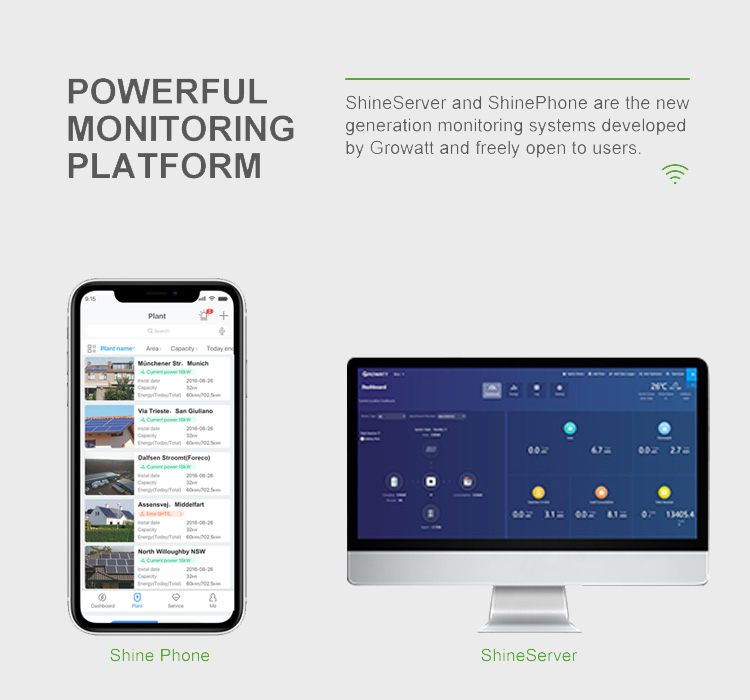

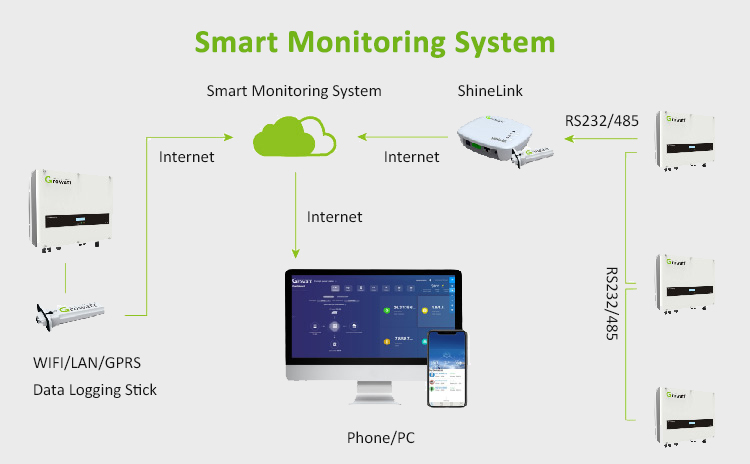

Monitor : RF/WIFI/GPRS	Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes/optional

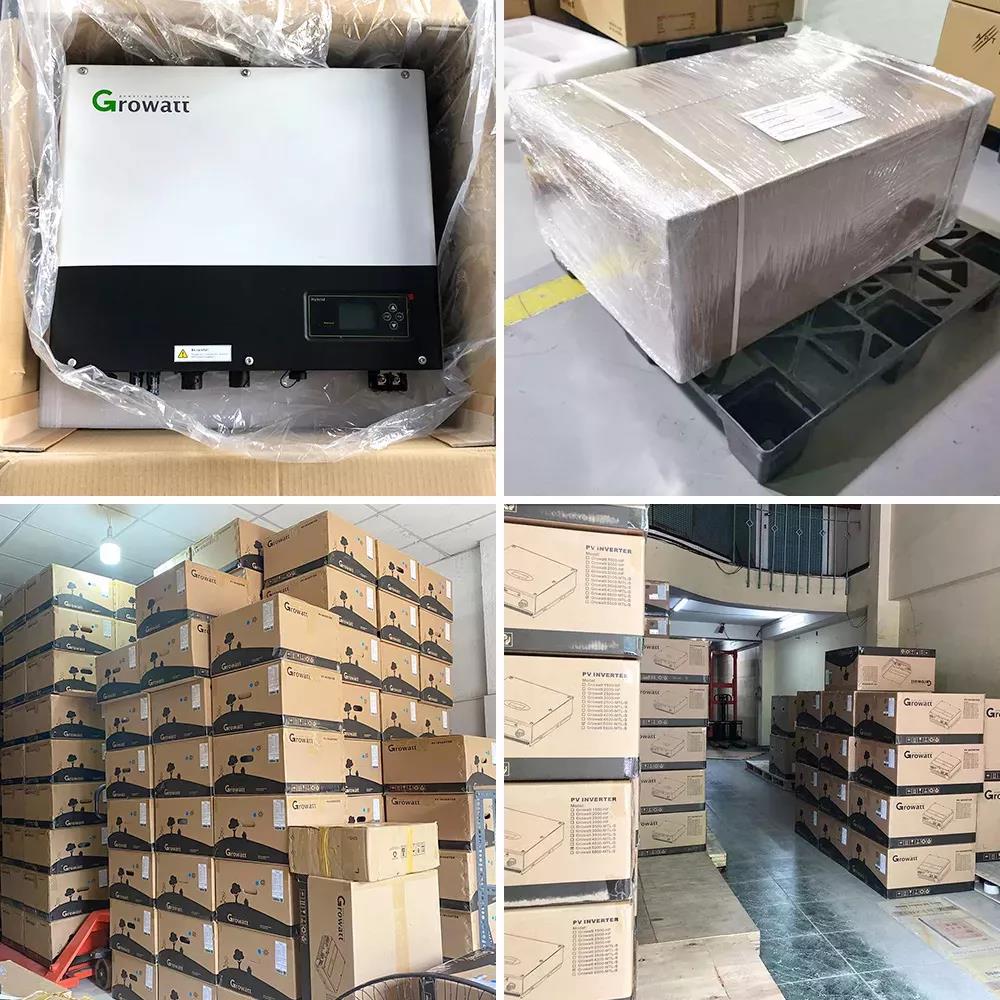

Packing & Delivery

FAQ

Are you trading company or manufacturer?

We are a professional manufacturer in China.

Where is the factory of Ruitong?

Zhengzhou City,Henan Province, China

What can I get to be Retonpower agent?

*More technical training, support and more free spare parts.
*Special price support for Retonpower agent.
*Advertising & publicity expenses share for Retonpower brand.
*Annual bonus, based on your annual sales amount.
*Fast good delivery as we have regular products in stock.

What can you buy from us?

Hybrid inverter, off grid solar inverter, solar panel,lithium iron battery ,storage solar system and electrical equipment.
