Growatt TL3-S 12kw 13kw 15kw 3 Phase Growatt 13000w On Grid Hybrid MPPT Solar Inverter

  • Output Voltage 230V AC
  • Max. DC voltage 1000VDC
  • Size 100*300*440mm
  • Inverter Efficiency 90%-93%
Free Quote [email protected]
Share
Product Description Specification Packing & Delivery FAQ Related Products
Product Description

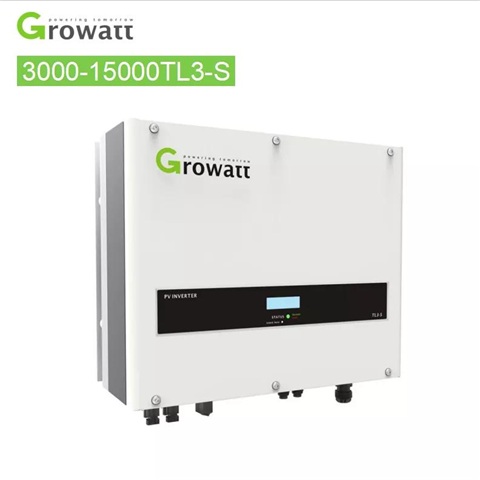

Growatt 12000~15000TL3-S

Max. Efficiency 98.4%

Dual MPP trackers

Supports export limitation

Integrated DC switch

Max. DC voltage 1000VDC

Natural cooling

Specification
Growatt 12000TL3-S ~ 15000TL3-S
Datasheet Growatt 12000TL3-S Growatt 13000TL3-S Growatt 15000TL3-S
Input data
Max. recommended PV power (for module STC) 14400W 15600W 18000W
Max. DC voltage 1000V 1000V 1000V
Start Voltage 160V 160V 160V
PV voltage range 160V-1000V 160V-1000V 160V-1000V
Nominal voltage 600V 600V 600V
MPP voltage range at Full Power 480V-850V 480V-850V 520V-850V
Max. input current 20A/10A 20A/10A 20A/10A
Number of independent MPP trackers/ strings per MPP tracker 2/2+1 2/2+1 2/2+1
Output (AC)
Rated AC output power 12kW 13kW 15kW
Max AC apparent power 13.2kVA 14.3kVA 16.5kVA
Max. output current 19A 20.6A 23.8A
AC nominal voltage; range 230V/400V 230V/400V 230V/400V
320-478V 320-478V 320-478V
AC grid frequency 50/60Hz ±5Hz 50/60Hz ±5Hz 50/60Hz ±5Hz
Power factor 0.8leading – 0.8laging 0.8leading – 0.8laging 0.8leading – 0.8laging
THDi <3% <3% <3%
AC grid connection type 3W+N+PE 3W+N+PE 3W+N+PE
Efficiency
Max.efficiency 98.40% 98.40% 98.40%
Euro – eta 97.80% 98% 98%
MPPT efficiency 99.50% 99.50% 99.50%
Protection Devices
DC reverse polarity protection yes yes yes
DC switch yes yes yes
Output over current protection yes yes yes
Output AC overvoltage Protection – Varistor yes yes yes
Ground fault monitoring yes yes yes
Grid monitoring yes yes yes
Integrated all-pole sensitive leakage current monitoring unit yes yes yes
General Data
Dimensions(W/H/D) 480/448/200 mm 480/448/200 mm 480/448/200 mm
Weight 23.5kg 23.5kg 23.5kg
Operating temperature range -25 °C … +60 °C -25 °C … +60 °C -25 °C … +60 °C
Noise emission (typical) ≤35 dB(A) ≤35 dB(A) ≤35 dB(A)
Altitude 3000m 3000m 3000m
Self-consumption night < 0.5W < 0.5W < 0.5W
Topology Transformerless Transformerless Transformerless
Cooling concept Natural Natural Natural
Environmental Protection Rating IP65 IP65 IP65
Relative humidity 0~100% 0~100% 0~100%
Features
DC connection H4/MC4(opt) H4/MC4(opt) H4/MC4(opt)
AC connection Screw terminal Screw terminal Screw terminal
Display LCD LCD LCD

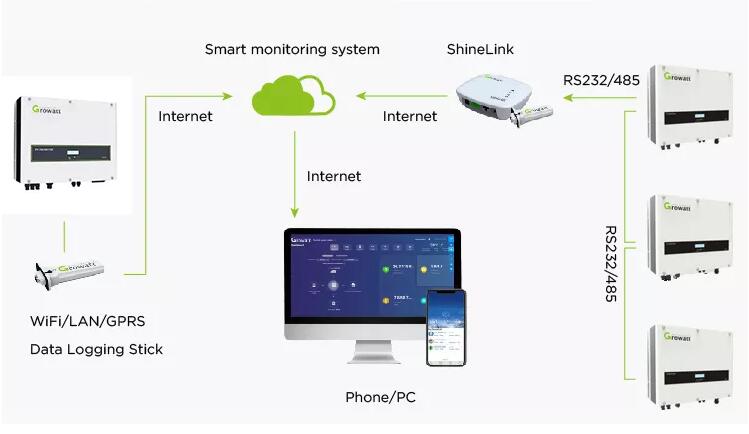

Interfaces:RS232/RS485/RF/Ethernet/Wi-Fi Warranty:5 years/10 years yes/yes/opt/opt/opt yes/yes/opt/opt/opt yes/yes/opt/opt/opt
yes/opt yes/opt yes/opt
Certificates CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC
